Olympic Controls
The Stack, 1133 Melville Street, Vancouver

1133 Melville Street · Vancouver, BC

The Stack.

A Honeywell WEBs building-automation architecture connecting supervisory operations, central plant and field-level comfort control across one of Vancouver's most distinctive towers.

Explore the installation
37
storeys served
15
scheduled CIPer 50 controllers
2
major mechanical-plant levels
6
featured Honeywell product families
2024
LEED Platinum + Zero Carbon awards

Honeywell WEBs architecture

Connected control from browser to room.

The as-built package maps WEBs supervision to IP controllers serving chilled-water, heating-water, domestic-hot-water, heat-recovery, airside, terminal and parkade systems.

  • WEBs N4
  • WEB-8000
  • CIPer 50
  • CIPer 30
  • Spyder Model 7
  • TR40
  • TR42
  • BACnet/IP
  • Sylk
  1. Operations01

    Honeywell WEBs Server

    Browser graphics · alarms · histories · schedules

  2. Supervision02

    WEB-8000

    Network integration and parkade supervision

  3. Plant + equipment03

    CIPer 50 · CIPer 30 · SM7 Unitary

    Programmable IP control

  4. Zone interface04

    TR40 · TR42

    Temperature sensing and occupant access

Installed product showcase

The Honeywell control stack.

WEBs Server

Honeywell Building Controls

WEBs Server

Building-wide operator layer

The WEBs Niagara platform gives operators a browser-based view of alarms, schedules, trends and integrated building systems.

WEB-8000

Honeywell Building Controls

WEB-8000

Parking systems supervisor

A dedicated WEB-8000 supervises the parkade controls network and connects field devices to the wider WEBs operating environment.

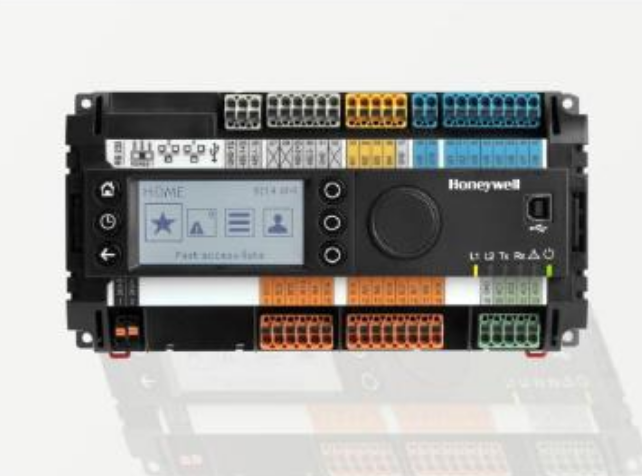

Honeywell Building Controls CIPer 50

Honeywell Building Controls

CIPer 50

IP plant controller

Fifteen scheduled CIPer 50 controllers execute central mechanical-plant and heat-recovery sequences at Levels 18 and 37.

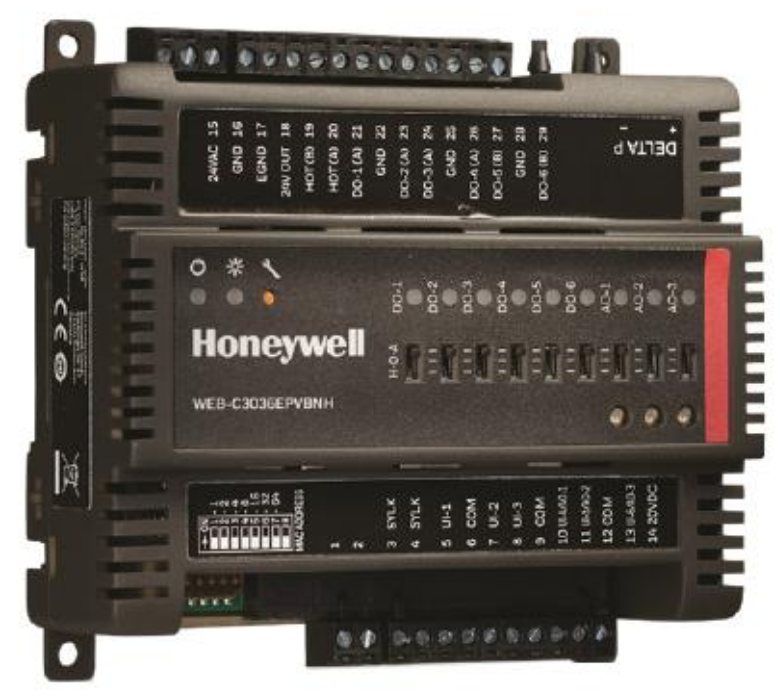

Honeywell Building Controls CIPer 30

Honeywell Building Controls

CIPer 30

IP equipment controller

CIPer 30 unitary and VAV controllers extend Niagara control to airside, terminal and auxiliary equipment throughout the tower.

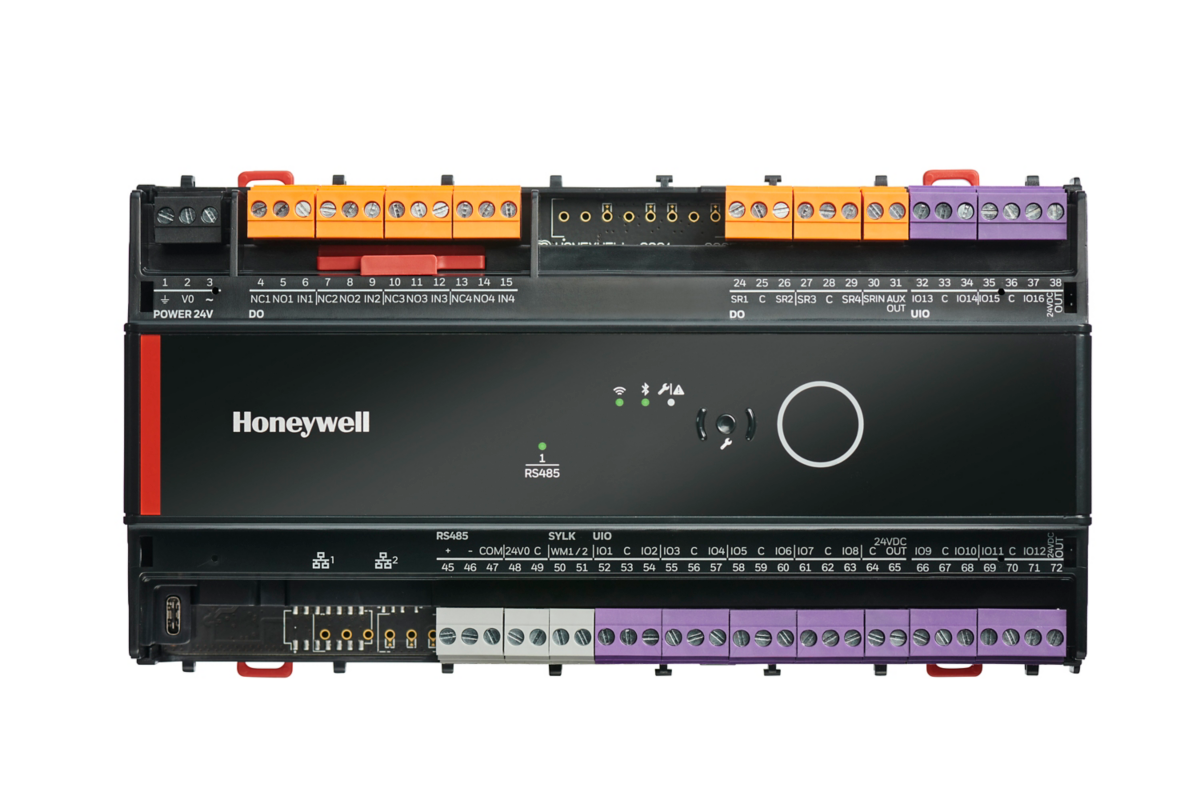

Honeywell Building Controls Spyder Model 7

Honeywell Building Controls

Spyder Model 7

Programmable unitary control

The SM7 unitary controller brings flexible, freely programmable control to fan coils, air handlers and other packaged HVAC equipment, with BACnet networking, Sylk integration and Bluetooth commissioning.

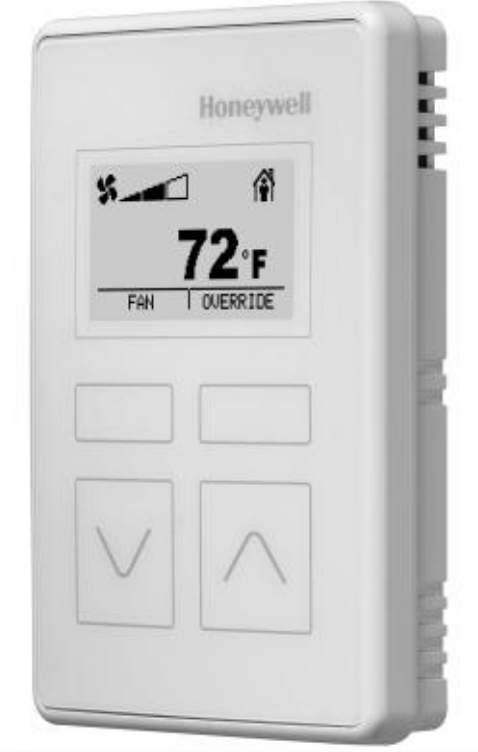

Honeywell Building Controls TR40 + TR42

Honeywell Building Controls

TR40 + TR42

Sylk wall modules

TR40 and display-equipped TR42 wall modules provide local temperature sensing and occupant interaction at the zone.

Integrated capabilities

Central plant

Chilled water, heating water, domestic hot water and air-source heat-pump coordination.

Airside systems

AHUs, HRVs, VAV systems, fan coils and ventilation sequences connected across the tower.

Parking control

Dedicated WEB-8000 supervision links parking ventilation and field controls to operations.

Open IP network

WEBs N4 and BACnet/IP create a scalable path from enterprise graphics to field controllers.
